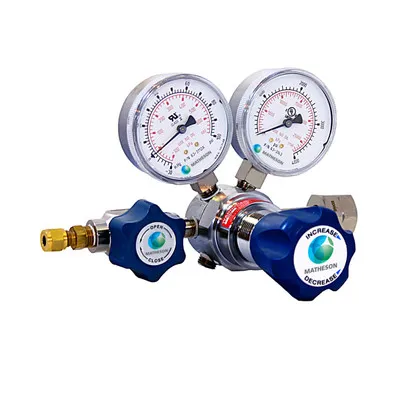

A High-purity regulator designed for analytical applications. Use with non-corrosive gases.
• Supply of carrier gas / detector support gas for a variety of gas chromatography applications
• Supply of calibration standards to on-line process analyzers, emission monitoring systems, etc.
• High-purity nickel plated brass barstock body
• High-purity 316 stainless steel diaphragm
• Metal to metal seals minimize diffusion of contaminants
• 2-1/2” inlet and delivery pressure gauges
• Equipped with outlet diaphragm valve
• Bonnet ported and threaded to pipe gases away from work area
• 1/4” compression tube outlet connection
• 10 micron metal filter protects seat from contamination
• Panel mountable, front bonnet thread and back (10-32UNF)
• Bonnet vent hole size: 1/8” NPTF
| Part Number* | Max Delivery Pressure |
Delivery Pressure Gauge |
Cylinder Pressure Gauge |
| SEQ3531ACGA-S | 15 psi | -30″-0-30 psi | 0-4000 psi |
| SEQ3537ACGA-S | 50 psi | -30″-0-100 psi | 0-4000 psi |
| SEQ3539ACGA-S | 125 psi | -30″-0-200 psi | 0-4000 psi |
| SEQ3536ACGA-S | 250 psi | 0-400 psi | 0-4000 psi |
| SEQ3538ACGA-S | 500 psi | 0-1000 psi | 0-4000 psi |
*Note: where CGA is replaced by the actual CGA number. Some CGA limitations may apply. (NI) for 1/4″ FNPT inlet
• Gauges: Chrome plated brass
• Body: Nickel plated brass barstock
• Bonnet: Chrome plated brass barstock
• Diaphragm: 316L stainless steel
• Seat: Teflon
• Seals: Metal to metal
• Valve Body (4370 Series): Nickel Plated Brass
• Valve Diaphragm: 316L stainless steel
• Valve Seat: PCTFE
• Maximum Inlet Pressure: 3000 psi (20,700 kPa)
• Typical Max Flow Rate (100 psi del press) : 8 SCFM-N2 (230 SLPM)
• Flow Capacity (Cv): 0.08
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Porting (Regulator Body): 1/4” NPT Female
• Porting Configuration: 3 High, 3 Low
| Mounting Options | |||
| Mounting Bracket for Single Stage & Line Regulators Two 10-32 screws are needed to mount the back of the regulator to this bracket. |
|||
| Mounting Bracket for Regulators PMK-2N Mounting Nuts are also needed (see below). The regulator knob will have to be removed in order to mount on this bracket. |
|||
| PMK-2N Mounting Nuts These nuts can be used either with the above bracket or for mounting in a panel. |
|||
| 53 Series Protocol Station This brass manifold is designed to provide a safe, reliable way of wall-mounting a cylinder regulator. Manifolds are provided a durable stainless steel bracket, stainless steel flex hose (3 ft std.), and a CGA connection with integral check valve. |
