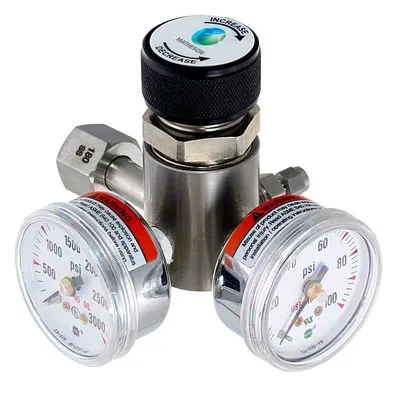

3370 Series Micro VOC Regulators – Stainless Steel

The 3370 Series Pressure Regulator is a compact single stage regulator with new patent pending technology that enables the performance of a two stage regulator. The 3370 Series is a diaphragm sensed, single stage regulator capable of significantly reducing the decaying inlet characteristic (supply pressure effect) that is typically characteristic of single stage regulator designs. The result: the stable delivery pressure of a two stage regulator in the compact design of a single stage. The 3370 Series is elastomer free with a stainless steel body, stainless wetted parts, an Elgiloy® diaphragm, Teflon® seals, and small internal volume for compatibility with high purity applications. The 3370 Series is fitted with an Elgiloy diaphragm that is conducive to high cycle applications and wide temperature swings.

Design Features

• Reduced decaying inlet characteristic (supply pressure effect) in a single stage design
• Reduced contamination and outgassing with Elgiloy® diaphragm, stainless body, stainless wetted parts, and Teflon® seals
• Compact size
• Elastomer free
• Machined bar stock body, and bonnet eliminates porosity found in castings
• Elgiloy® diaphragm conducive to high cycle applications and wide temperature swings

Materials of Construction

• Body: 316 Stainless Steel
• Diaphragm: Elgiloy
• Seat: PFA Teflon
• Seals: Kalrez/Teflon
• Gauges: Stainless Steel
• Hand Knob: 6061-T6 Aluminum

Specifications

• Maximum Inlet Pressure: 3000 psi (20,700 kPa)
• Operating Temperature: -15°F to 160°F (-26°C to 71°C)
• Internal Volume: 1.07 cc
• Inlet – CGA 180
• Outlet – 1/16” compression fitting
• Porting (Regulator Body): 1/8” NPT Female
