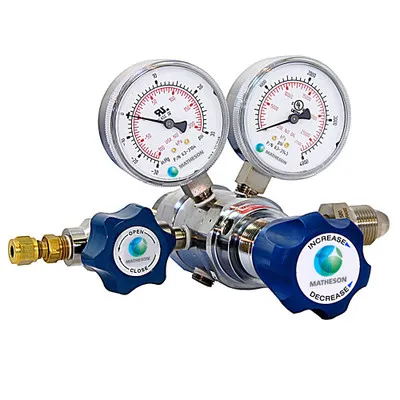

High-purity brass regulators designed for use with analytical applications. For use with non-corrosive gases.
• Supply of carrier gas/detector support gas for a variety of gas chromatography applications.
• Supply of calibration standards to on-line process analyzers, emission monitoring systems, etc.
• High purity applications with non-corrosive gases requiring a constant delivery pressure.
• High-purity nickel plated brass barstock body
• High-purity 316L stainless steel diaphragm
• Metal to metal seals minimize diffusion of contaminants
• 2-1/2” inlet and delivery pressure gauges
• Equipped with outlet diaphragm valve
• Bonnet ported and threaded to pipe gases away from work area
• 1/4” compression tube outlet connection
• 10 micron metal filter protects seat from contamination
• Panel mountable, front bonnet and back bonnet threaded
• Optional interstage relief valve available
• Bonnet vent holes size: 1/8” FNPT
| Part Number* | Max Delivery Pressure |
Delivery Pressure Gauge |
Cylinder Pressure Gauge |
| SEQ3120ACGA | 15 psi | -30″-0-30 psi | 0-4000 psi |
| SEQ3121ACGA | 50 psi | -30″-0-100 psi | 0-4000 psi |
| SEQ3122ACGA | 125 psi | -30″-0-200 psi | 0-4000 psi |
| SEQ3126ACGA | 250 psi | 0-400 psi | 0-4000 psi |
| SEQ3128ACGA | 500 psi | 0-1000 psi | 0-4000 psi |
*Note: where CGA is replaced by the actual CGA number. Some CGA limitations may apply. (NI) for 1/4″ FNPT inlet
• Gauges: Chrome plated brass
• Body: Nickel plated brass barstock
• Bonnets: Chrome plated brass barstock
• Diaphragms: 316L stainless steel
• Seats:
1st Stage – Teflon
2nd Stage – Teflon
• Seals: Metal to metal
• Valve Body (4370 Series): Nickel Plated Brass
• Valve Diaphragm: 316L stainless steel
• Valve Seat: PCTFE
• Maximum Inlet Pressure: 3000 psi (20,700 kPa)
• Typical Max Flow Rate (100 psi del press) : 7 SCFM-N2 (200 SLPM)
• Flow Capacity (Cv): 0.06
• Interstage Pressure
Model 3120A: ~350 psi
Model 3121A: ~350 psi
Model 3122A: ~350 psi
Model 3126A: ~350 psi
Model 3128A: ~560 psi
• Operating Temperature: -40°F to 140°F (-40°C to 60°C)
• Porting (Regulator Body): 1/4” NPT Female
• Porting Configuration: 2 High, 3 Low, l Interstage
| Mounting Options | |||
| Mounting Bracket for Dual-Stage Regulators PMK-2N Mounting Nuts are also needed (see below). The rear bonnet of the regulator mounts to this bracket. |
|||
| PMK-2N Mounting Nuts These nuts can be used either with the above bracket or for mounting in a panel. |
|||
| 53 Series Protocol Station This brass manifold has a CGA bushing outlet connection for easy attachment of a cylinder regulator. The manifold also has a mounting bracket, flex hose, and CGA fitting with integral check valve. |
