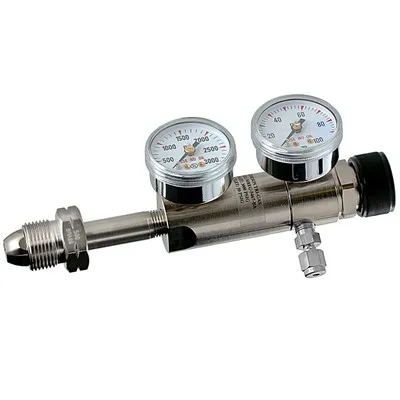

The MATHESON 2210 Series adjustable, miniature, dual-stage (first stage piston, second stage diaphragm) pressure reducing regulators are designed for precise, low-flow gas delivery. Their compact, dual-stage design provides precise, stable delivery pressures even as the supply pressure decreases. The MATHESON 2210 Series regulators control inlet pressures up to 3000 PSIG and have a flow capacity Cv of 0.04. The MATHESON 2210 Series regulators are available in a wide variety of configurations, making them ideal for use in labs, industrial monitors, disposable / transportable gas cylinders, and for the regulation of a broad range of media.
Low flow applications requiring high-purity gases and a compact regulator due to space limitations.
• High-purity plated brass barstock body
• High-purity 316 stainless steel diaphragm
• 1-1/2” inlet and delivery pressure gauges
• Porous metal filter protects seat from contaminants
• 3000 psi cylinder pressure gauge
• Precise, stable delivery pressure, even as the supply pressure decreases
• Low internal volume promotes quick gas flow stabilization and purging
• Models are available for non-corrosive service.
• Several outlet configurations are available
• Integral inlet filter
• Compact size (1¼ in. diameter x 5 in. long regulator body)
• Extremely light weight
| Part Number* | Outlet Connection |
Max Delivery Pressure |
Delivery Pressure Gauge |
Cylinder Pressure Gauge |
| SEQ2211CGAH | 1/8″ Hose Barb | 10 psi | 0-15 psi | 0-3000 psi |
| SEQ2213CGAH | 1/8″ Hose Barb | 50 psi | 0-100 psi | 0-3000 psi |
| SEQ2215CGAH | 1/8″ Hose Barb | 100 psi | 0-160 psi | 0-3000 psi |
| SEQ2211CGAT | 1/8″ Compression | 10 psi | 0-15 psi | 0-3000 psi |
| SEQ2213CGAT | 1/8″ Compression | 50 psi | 0-100 psi | 0-3000 psi |
| SEQ2215CGAT | 1/8″ Compression | 100 psi | 0-160 psi | 0-3000 psi |
| SEQ2211CGAF | 1/8″ FNPT | 10 psi | 0-15 psi | 0-3000 psi |
| SEQ2213CGAF | 1/8″ FNPT | 50 psi | 0-100 psi | 0-3000 psi |
| SEQ2215CGAF | 1/8″ FNPT | 100 psi | 0-160 psi | 0-3000 psi |
*Note: where CGA is replaced by the actual CGA number. Some CGA limitations may apply. (NI) for 1/4″ FNPT inlet
• Gauges: Chrome plated brass
• Body: Plated brass barstock
• Bonnet: 6061-T6 Aluminum/clear anodized
• Piston (first stage): SAE 360 Brass
• Diaphragms (second stage): Elgiloy
• Seats: Teflon
• Piston Seals: Viton
• Inlet Filter: 40 micron sintered stainless steel
• Maximum Inlet Pressure: 3000 psi (20,700 kPa)
• Flow Capacity (Cv): 0.04
• Typical Max Flow Rate (2215) : 10 SLPM-N2
(2213) : 5 SLPM-N2
(2211) : 300 ccm-N2
• Operating Temperature: -15°F to 140°F (-26°C to 60°C)
• Inlet Port (Regulator Body) : 1/4” NPT Female
• Outlet Port (Regulator Body): 1/8” NPT Female
• Gauge Ports: 1/8” NPT Female
• Porting Configuration: 2 High, 2 Low
• 1/8″ Compression: Stainless Steel
• 1/8″ Hose Barb: Brass
• 1/8″ FNPT: Brass
