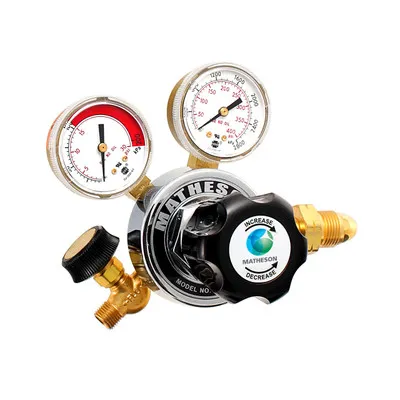

A general purpose regulator with rugged construction for use with Acetylene gas.
• Acetylene gas service
• Applications with high duty cycle/demanding operating conditions
• Forged brass body
• Neoprene diaphragm
• 2” inlet and delivery pressure gauges
• Equipped with outlet needle valve
• Left Hand 9/16-18 outlet connection (Acetylene hose fitting connection)
• Porous metal filter to protect seat from contamination
| Part Number | Max Delivery Pressure |
Delivery Pressure Gauge |
Cylinder Pressure Gauge |
| SEQ18A510* | 15 psi | 0-30 psi | 0-400 psi |
*Note: For Acetylene Service Only
• Gauges: Brass, Painted steel covers
• Body: Forged brass
• Bonnet: Chrome plated brass
• Diaphragm: Neoprene
• Seat: PTFE Teflon
• Seals: Neoprene
• Maximum Inlet Pressure: 400 psi (2,760 kPa)
• Maximum Flow Rate (At 400 psi, N2):
Model 18A: 500 SCFH (236 LPM)
• Flow Capacity (Cv): 0.17 without outlet valve
• Operating Temperature: -20°F to 140°F (-29°C to 60°C)
• Porting (Regulator Body): 1/4” NPT Female
• Porting Configuration: 2 High, 2 Low
| Mounting Options | |||
| 53 Series Protocol Station This brass manifold is designed to provide a safe, reliable way of wall-mounting a cylinder regulator. Manifolds are provided a durable stainless steel bracket, stainless steel flex hose (3 ft std.), and a CGA connection with integral check valve. |
